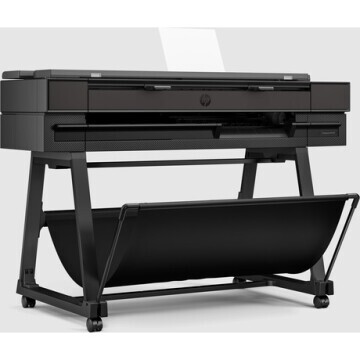

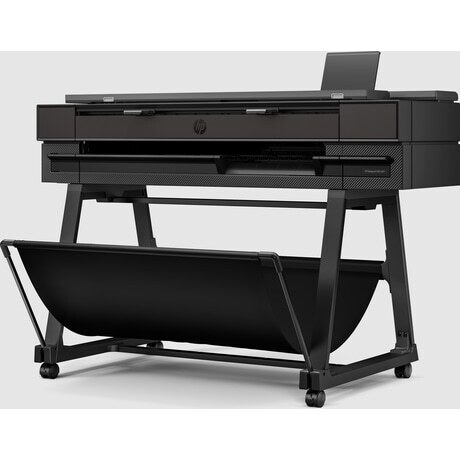

HP DesignJet T850 Multifunction Plotter Printer 36" A0 - 3 year onsite warranty
HP's EASIEST[1]—Multi-size printing in one click
Do it all—also print A3 jobs using the integrated input tray, without manually changing from roll to sheets. Achieve high-quality CAD and renders across print sizes with HP Flex Tech Inks. Avoid distractions with fewer ink interventions thanks to 130/300-ml cartridges.
CONNECTED—Secure and seamless collaboration
Save time with HP Click—print in fewer steps and avoid reprinting with print preview. Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security. Stay on task with HP app[2]—manage your device and print from virtually anywhere using your mobile or tablet.
GO BEYOND—Meet office and environmental needs
Advance environmental goals—printer is made with at least 35% recycled plastics[3] and recyclable supplies[4]. Invest in a robust and compact plotter that’s designed to last. Reduce energy and ink waste—auto schedule printer on/off usage and enjoy efficient ink maintenance routines.
Specifications
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Copy reduce / enlarge settings | 50 to 400% |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
| Finished output handling | Sheet feed, roll feed, input tray (50 sheet capacity), media bin, automatic horizontal cutter |
| Functions | Print, copy, scan |
| HP ePrint capability | Yes |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Pigment-based (C, M, Y, mK) |
| Internal Storage | None |
| Line accuracy | ±0.1%[2] |
| Linear scan speed | Up to 3.81 cm/sec (colour, 200 dpi), up to 11.43 cm/sec (grayscale, 200 dpi) |
| Manufacturer Warranty | Three-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
| Maximum media thickness | Up to 0.8 mm |
| Maximum optical density (black) | 15 L* min/1.7 D[3] |
| Maximum scan length | 7 m[4] |
| Media sizes standard (metric rolls) | 369 to 914 mm |
| Media sizes supported | Input tray: A4, A3; Manual feed: A4, A3, A2, A1, A0 |
| Media sizes, custom | Input tray: 210 x 279 to 305 x 457 mm; Manual feed: 210 x 279 to 914 x 1676 mm |
| Media thickness | Up to 11.8 mil |
| Media thickness (metric) | Up to 0.3 mm |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte) |
| Media weight, recommended | 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray) |
| Media width, maximum | 914 mm |
| Memory | 2 GB |
| Model size | 914 mm |
| Network ready | Standard |
| Non-Operating Humidity Range | 0 to 95% RH |
| Non-printable area (cut-sheet) | 5 x 5 x 5 x 5 mm |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm |
| Number of print cartridges | 4 (C, M, Y, mK) |
| Operating altitude | Up to 3000 m |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Orderable supplies | HP Original Ink: HP 738 cartridges (Black, Cyan, Magenta, Yellow), and HP 739 printhead |
| Post consumer recycled plastic in hardware by weight of plastic | 37% |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Power consumption | 35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage. |
| Print cartridge volume delivered | 300 ml, 130 ml |
| Print head nozzles | 1376 per colour; 5504 in total |
| Print heads | 1 (C, M, Y, mK) |
| Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
| Print quality color (best) | Up to 2400 x 1200 optimised dpi |
| Print speed | 25 sec/page on A1, 90 A1 prints per hour[1] |
| Print Technology | Ink |
| Print technology | HP Thermal Inkjet |
| Printer drivers included | Raster driver for macOS and Windows, HP-GL/2 driver for Windows |
| Printing path | Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
| Product display name | HP DesignJet T850 Large Format 36-in Multifunction Plotter Printer with Automatic A1/D and A3/B Printing in One Device |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] |
| Registration required | No |
| Roll external diameter | 100 mm |
| Roll maximum input | 1 |
| Roll maximum weight | 6.2 kg |
| Safety | USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS) |
| Scan file format | JPEG, PDF, TIFF |
| Scan input modes | Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP app. |
| Scan resolution, optical | Up to 600 dpi |
| Scan size, maximum | 914 mm x 2.77 m |
| Scan size, minimum | 127 x 127 mm |
| Scanner type | Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
| Software included | HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS |
| Storage temperature range | -13 to 131°F |
| Supported Primary Applications | Line drawings; Renderings; Presentations; Maps; Posters |
| Technical features | A3 input tray;1-click scan/copy;130/300 ml cartidges;Auto-power on/off scheduler;Max. resolution 2400 x 2400 dpi;Sheet organiser accessories;HP Wolf Pro Security;HP Flex Tech Inks |
| Theoretical minimum line width | 0.02 mm (via raster driver) |
| UNSPSC code | 43212104 |
| What's in the box | HP DesignJet T850 MFP, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
